Steel Tubing Dimensions and Connection Selection

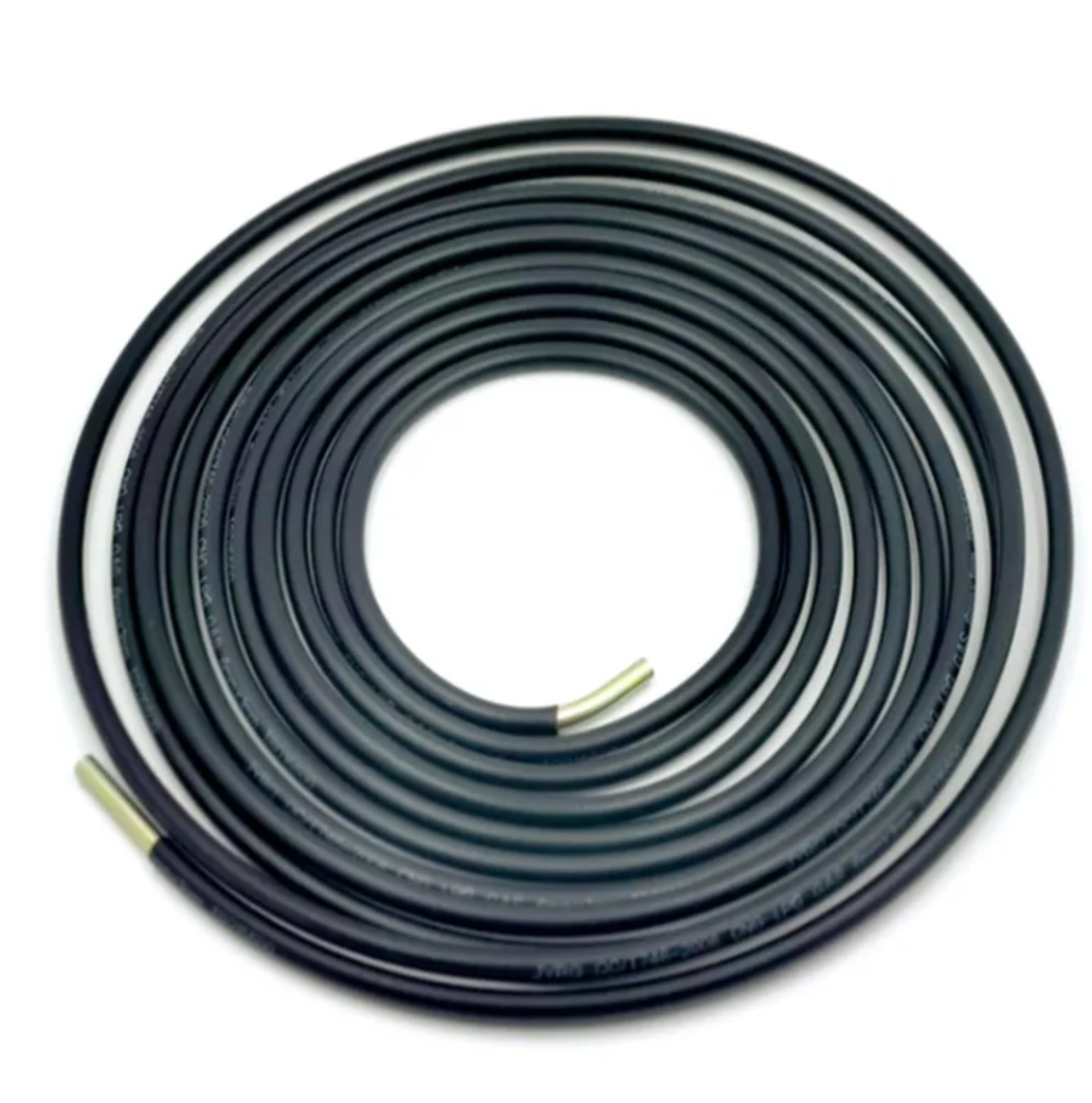

This low carbon steel gas pipe has a 6mm outside diameter, 1mm wall thickness and 5.5m standard length. The exterior is black. Custom cutting is available for orders requiring a different length.
Use in a CNG or LPG conversion system requires a matching tubing specification. Confirm the steel grade, manufacturing standard, pressure rating, surface treatment and connection requirements for the intended installation.
Product Specifications
| Item | Specification |
|---|---|
| Product type | Low carbon steel gas tubing |
| Outside diameter | 6mm |
| Wall thickness | 1mm |
| Standard length | 5.5m |
| Length options | Custom cutting available; confirm required length and cutting tolerance |
| Material | Low carbon steel; confirm the grade for the supplied product |
| Exterior color | Black |
| Intended application | Compatible automotive CNG or LPG piping installations |
What Does 6×1mm Mean?
The 6×1mm designation means 6mm outside diameter and 1mm wall thickness. Use the outside diameter when identifying compatible tube fittings. Confirm dimensional tolerances and the fitting manufacturer's permitted tubing specification before assembly.
Tube dimensions alone do not establish a working-pressure rating. Pressure suitability also depends on the material grade, manufacturing process, condition, temperature and connection system.
Factory and Processing Image
How Do You Select Tubing for the Installation?
Select the tubing by the actual line conditions rather than the vehicle category. Identify the fuel, installation position, operating pressure and temperature before specifying a replacement or a new piping run.
Fuel service: Identify CNG or LPG and the relevant gas or liquid phase.
Pressure: Provide the maximum operating pressure and any expected pressure fluctuations.
Connections: Specify the fitting type, sealing method and compatible tubing requirements.
Routing: Provide the required length, bend locations and mounting arrangement.
Environment: Identify exposure to moisture, road salt, abrasion and nearby heat sources.
Connected valves and reducers require compatible tube interfaces. Review our autogas valves and accessories and gas pressure regulators when identifying the associated components.
Surface Protection and Inspection Information
A black exterior does not identify the coating type or corrosion performance. Confirm the actual surface treatment and any supporting corrosion-test results for the supplied tubing.
Inspection documents should identify the tubing specification and supplied batch. Where required, request the following information before ordering:
Material grade and applicable manufacturing standard.
Outside-diameter and wall-thickness tolerances.
Pressure-test method, test conditions and acceptance criteria.
Surface-treatment specification and relevant test results.
Batch identification and product traceability.
Frequently Asked Questions
Is this 6mm inside-diameter tubing?
No. The specified 6mm dimension is the outside diameter. The wall thickness is 1mm. Confirm the complete dimensional specification when selecting fittings.
Can this pipe be used for both CNG and LPG?
Each application requires a separate compatibility check. Confirm the fuel, operating pressure, temperature, material specification and approved connection arrangement. A CNG or LPG product label alone does not establish suitability for every line.
What is the maximum working pressure?
The working-pressure limit must come from the specification for the supplied tubing and connection system. It cannot be determined from the 6×1mm dimensions alone. Send the required pressure with your inquiry.
Can I order lengths other than 5.5m?
Custom cutting is available. State the required length, quantity, cutting tolerance and delivery format when requesting a quotation.
Are fittings included with the pipe?
Confirm the package contents on the quotation. Specify any required nuts, sleeves, connectors or mounting brackets separately so they can be checked against the tubing and installation requirements.
Installation and Maintenance
Installation must follow the instructions for the selected tubing and fittings. Use suitable cutting, preparation and bending tools. Keep the bore clean and avoid flattening, kinking or damaging the tube surface.
Routing must protect the tubing from vibration, abrasion and heat. Use appropriate supports and protect exposed areas according to the installation requirements. Check the completed connections using the applicable system leak-test procedure.
Maintenance should include the tubing surface, supports and connections. Inspect for corrosion, mechanical damage, loose supports and signs of leakage. See our CNG and LPG conversion system maintenance guide for related maintenance information.
Request a Steel Gas Pipe Quotation
Send the required specification and quantity with your inquiry. Include the 6mm outside diameter, 1mm wall thickness, required length, fuel service, operating pressure, surface-treatment requirements and fitting details. Contact us to confirm the tubing specification and quotation.
