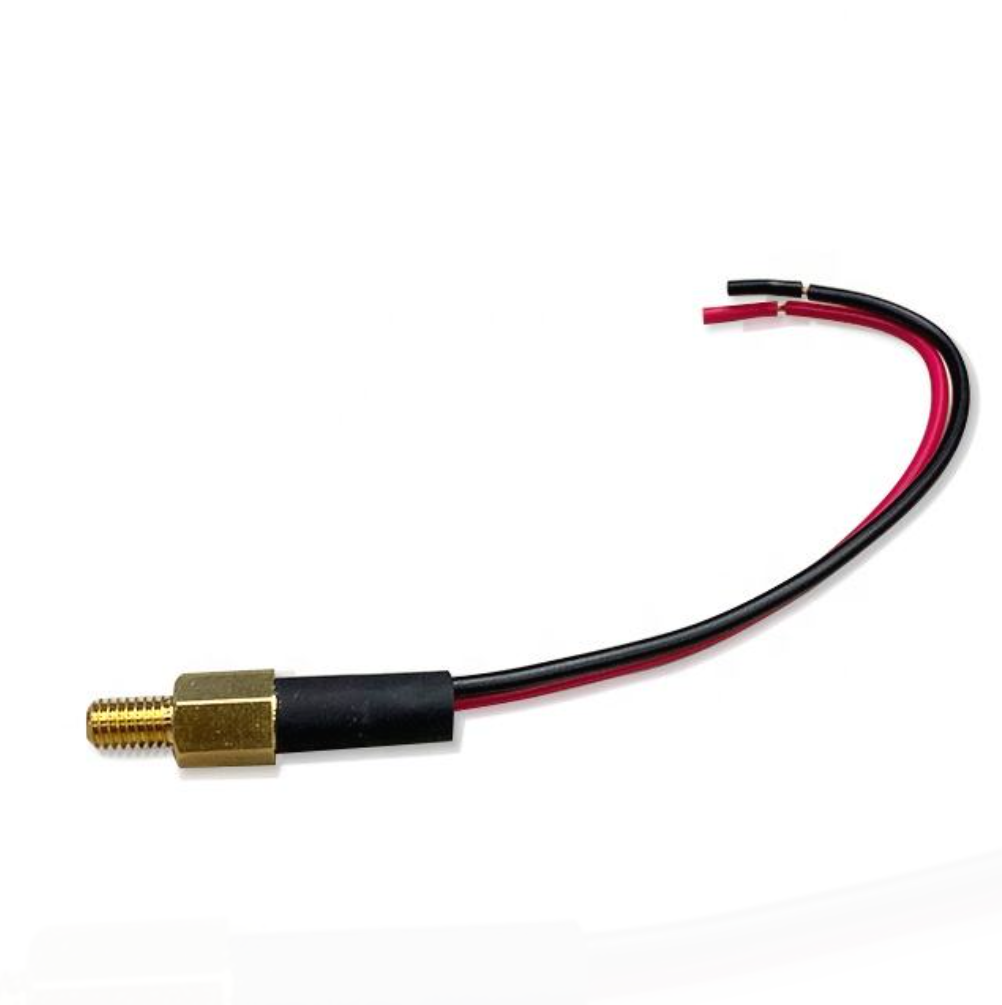

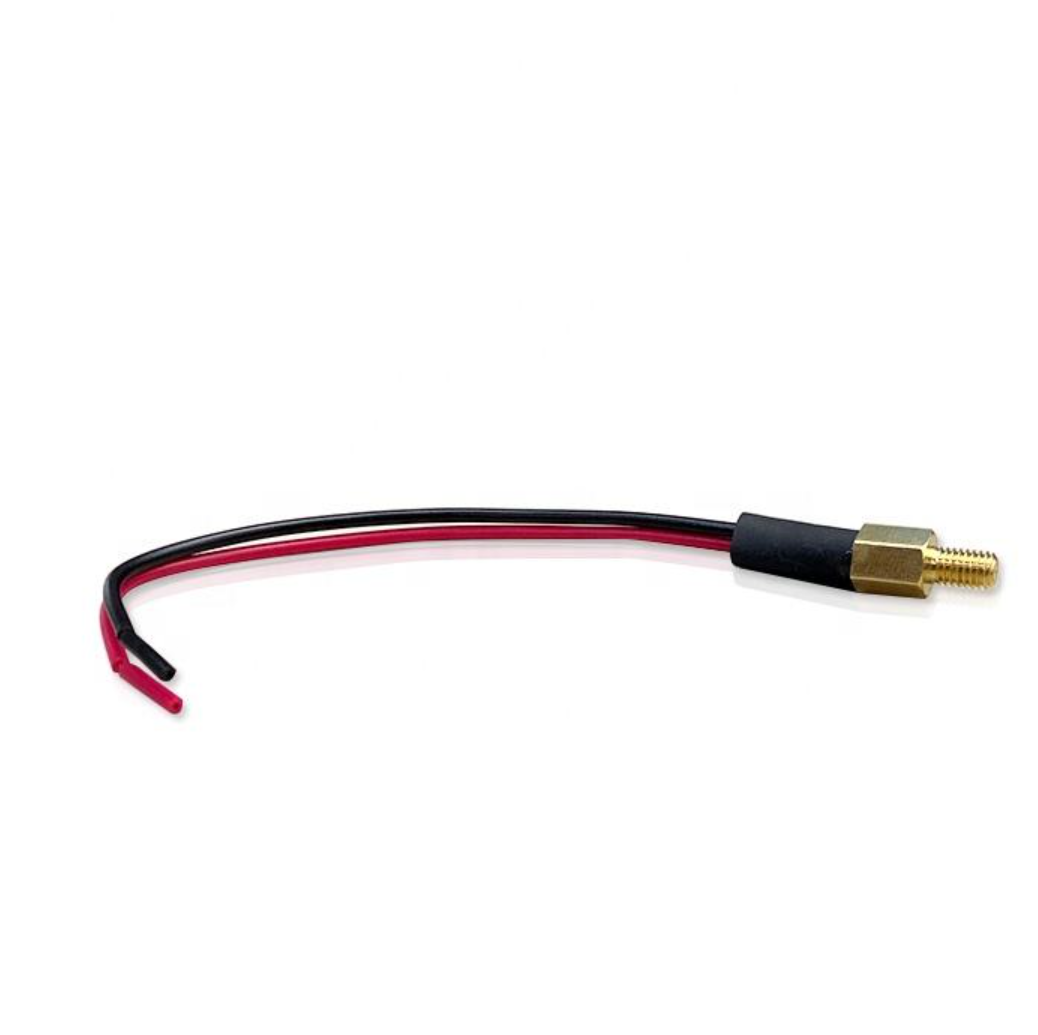

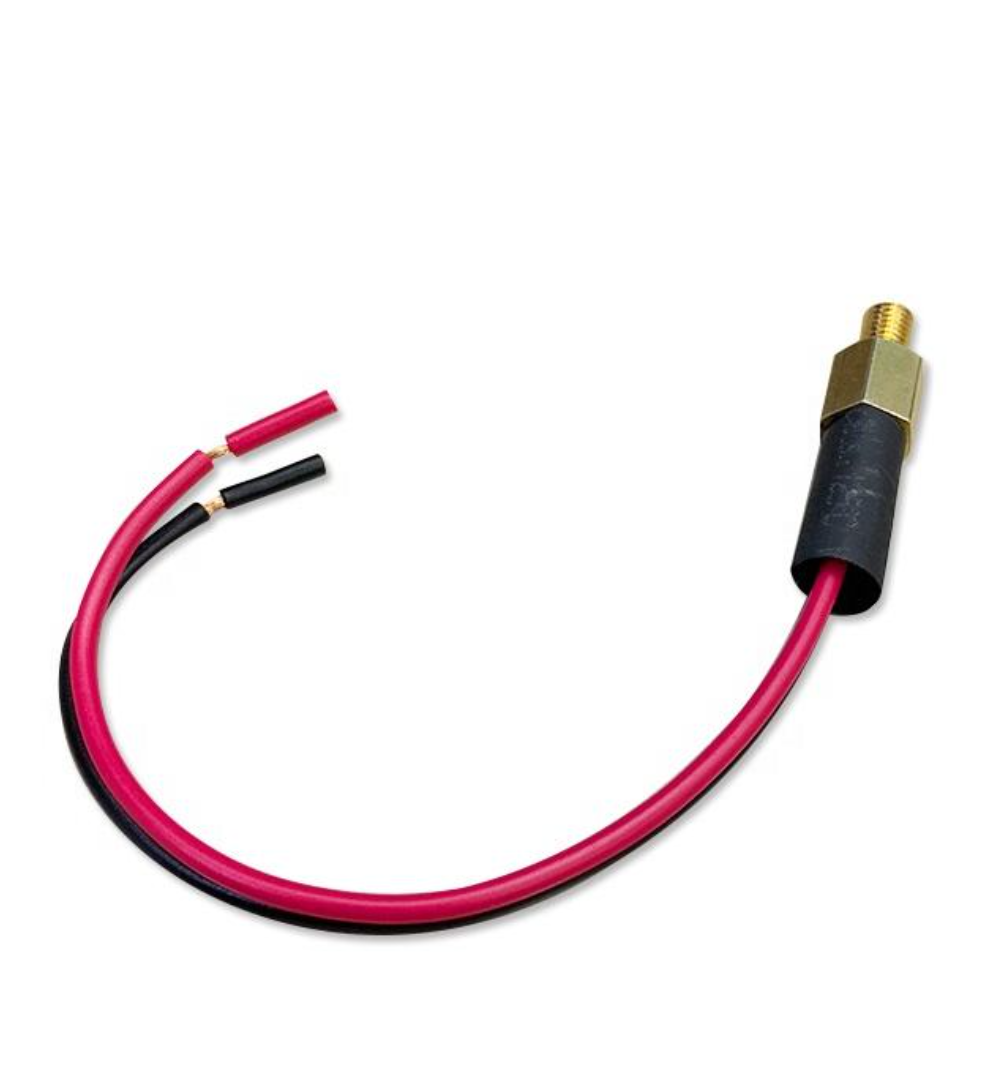

This temperature sensor provides an input to a compatible autogas ECU. Confirm the exact sensor reference, measurement location and electrical characteristics before ordering. The ECU must support the sensor's calibration.
Gas temperature, intake-air temperature and regulator temperature are different measurements. Identify the intended function from the technical sheet and installation drawing. Do not assume one sensor can replace all three types.
Technical Specifications to Confirm
Sensor selection requires a defined measurement range and signal characteristic. Request the following information for the supplied model.
| Product | Temperature sensor for a compatible CNG conversion system |
|---|---|
| Measurement Location | Confirm gas, intake air, regulator or other specified location |
| Sensing Element | Confirm element type and electrical characteristics |
| Measurement Range | Request temperature range in °C |
| Accuracy | Request tolerance and test conditions |
| Signal or Calibration | Request resistance-to-temperature data or the specified output characteristic |
| Electrical Requirements | Confirm ECU input requirements and any specified excitation or supply limits |
| Connector | Confirm pin count, pin assignment and mating connector |
| Mounting | Request probe dimensions, thread or connection type and sealing requirements |
| Operating Conditions | Confirm environmental limits and media compatibility |
Vehicle battery voltage is not automatically the sensor supply voltage. Follow the sensor and ECU wiring specifications. Do not apply power based only on the vehicle's nominal electrical system.
Will It Match Your ECU?
ECU calibration must match the sensor characteristic. Cylinder count and vehicle displacement do not establish compatibility. Provide the controller model and existing sensor reference for review.
Sensor type: Confirm whether it is a passive element or an active device.
Characteristic: Match the resistance curve or output signal to the ECU setting.
Wiring: Verify connector, pin assignment and grounding requirements.
Mechanical fit: Check probe size, mounting connection and clearance.
Application: Confirm the measured medium and installation location.
A matching plug does not prove interchangeability. Compare technical data before replacing an existing sensor. See our ECU and injector calibration guide for system background.
How Should Temperature Readings Be Checked?
Readings should be compared with a suitable reference under defined conditions. Qualified technicians should follow the manufacturer's test procedure rather than judging sensor condition from one ECU reading.
Identify the sensor and selected ECU calibration.
Check wiring, connector condition and relevant electrical inputs.
Allow the sensor and reference measurement to stabilize.
Compare results at the specified test points.
Evaluate deviations against the stated tolerance.
Response time and accuracy are separate specifications. Request the test medium, temperature conditions and measurement method for any response-speed claim.
Which Quality Records Should Buyers Request?
Inspection evidence should identify the tested sensor and acceptance limits. Request applicable records for the ordered version.
Temperature response: Test points, reference equipment and measured results.
Electrical checks: Resistance or output values under stated conditions.
Mechanical checks: Probe, connector and mounting dimensions.
Environmental claims: Applicable temperature, vibration or enclosure test records.
Traceability: Product reference, batch and inspection date.
Product documents must match the supplied sensor. Review our certification information and request applicable model-specific records.
Installation and System Matching
The installation location determines what the sensor measures. Follow the specified mounting method and connection requirements. Do not relocate the sensor solely because another position is easier to access.
Temperature compensation depends on the complete gas system. Confirm the ECU, regulator, injectors and related sensors together. Our conversion kit component guide explains the component roles.
Frequently Asked Questions
Does this sensor fit every four-, six- or eight-cylinder system?
Compatibility depends on the sensor and ECU specifications. Confirm the characteristic, wiring, mounting and software setting. Cylinder count alone is insufficient.
Can an air-temperature sensor replace a gas-temperature sensor?
Replacement requires confirmation of both electrical and application compatibility. The measured medium, mounting, material requirements and response characteristics may differ.
Does uneven idle prove the temperature sensor is faulty?
Uneven idle has several possible causes. Qualified technicians should check engine condition, gas pressure, wiring, sensor readings, injectors and calibration before replacing parts.
Will replacing the sensor reduce fuel consumption?
No fixed fuel-saving result is established by this listing. Diagnose the system and confirm the replacement specification before purchase.
What maintenance is required?
Follow the supplied inspection instructions. Check wiring, connectors and mounting during scheduled service. Our gas system maintenance guide provides background information.
Can I order it with other conversion parts?
Combined-order requirements can be reviewed with the quotation. Specify other components, quantities and destination. Confirm compatibility separately for each item.
Request a CNG Temperature Sensor Quotation
Send the existing sensor identification and ECU details. Include photographs, connector information, mounting dimensions, measurement location and available calibration data.
Confirm the exact specification before payment. Request the sensor reference, temperature range, characteristic, included accessories, price, warranty and delivery lead time.
