MP48 CNG LPG ECU Conversion Kits for 4 Cylinder Cars
This MP48 ECU kit is intended for compatible sequential gas injection systems. It controls gas injection in petrol-engine conversion applications. Confirm the controller version, wiring harness, injectors and sensors before ordering.
The supplied accessories must be identified in the quotation. An ECU kit is not automatically a complete vehicle conversion kit. Reducers, injector rails, cylinders and installation hardware must be confirmed separately.

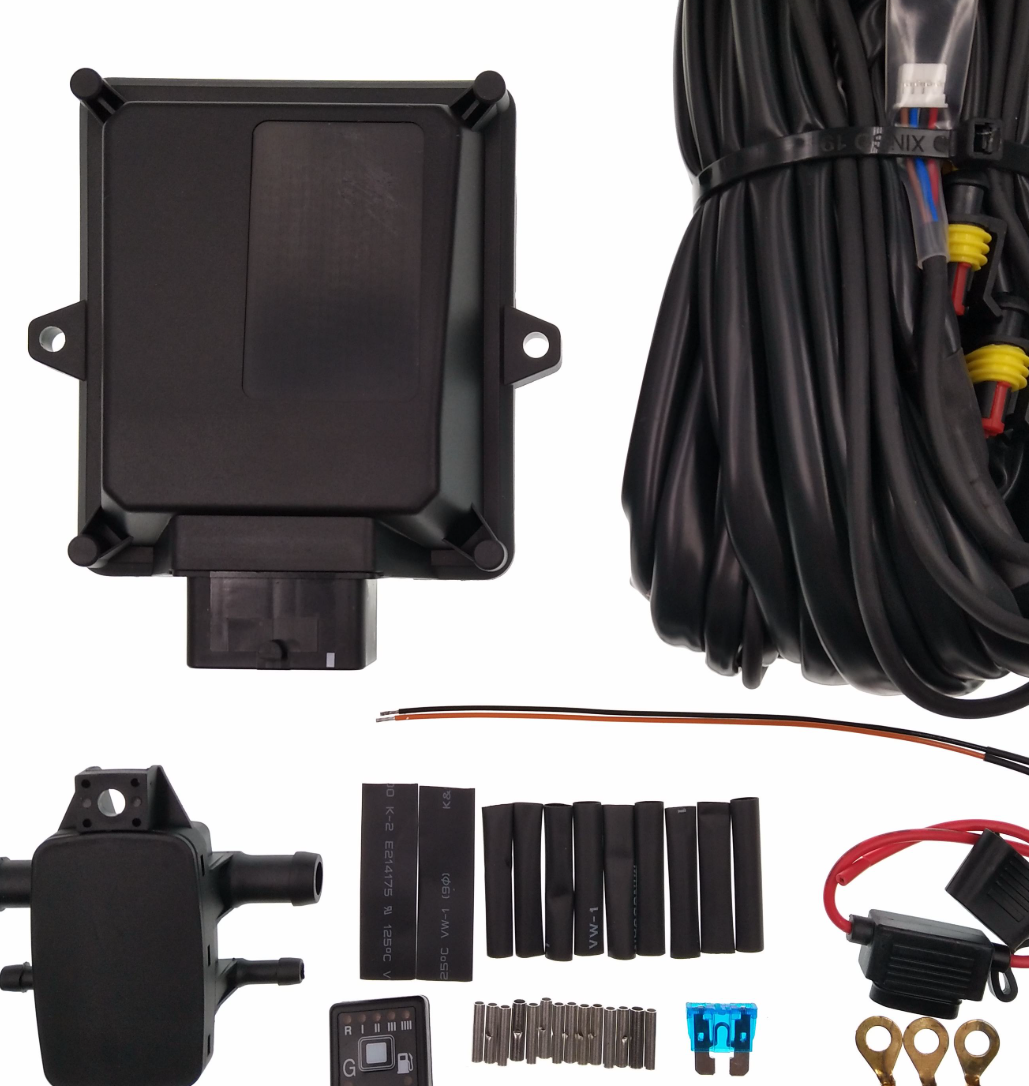

What Does the MP48 Kit Include?
The itemized offer defines the kit contents. Check the exact models and quantities rather than assuming every pictured item is included.
| Item | Purchasing Check |
|---|---|

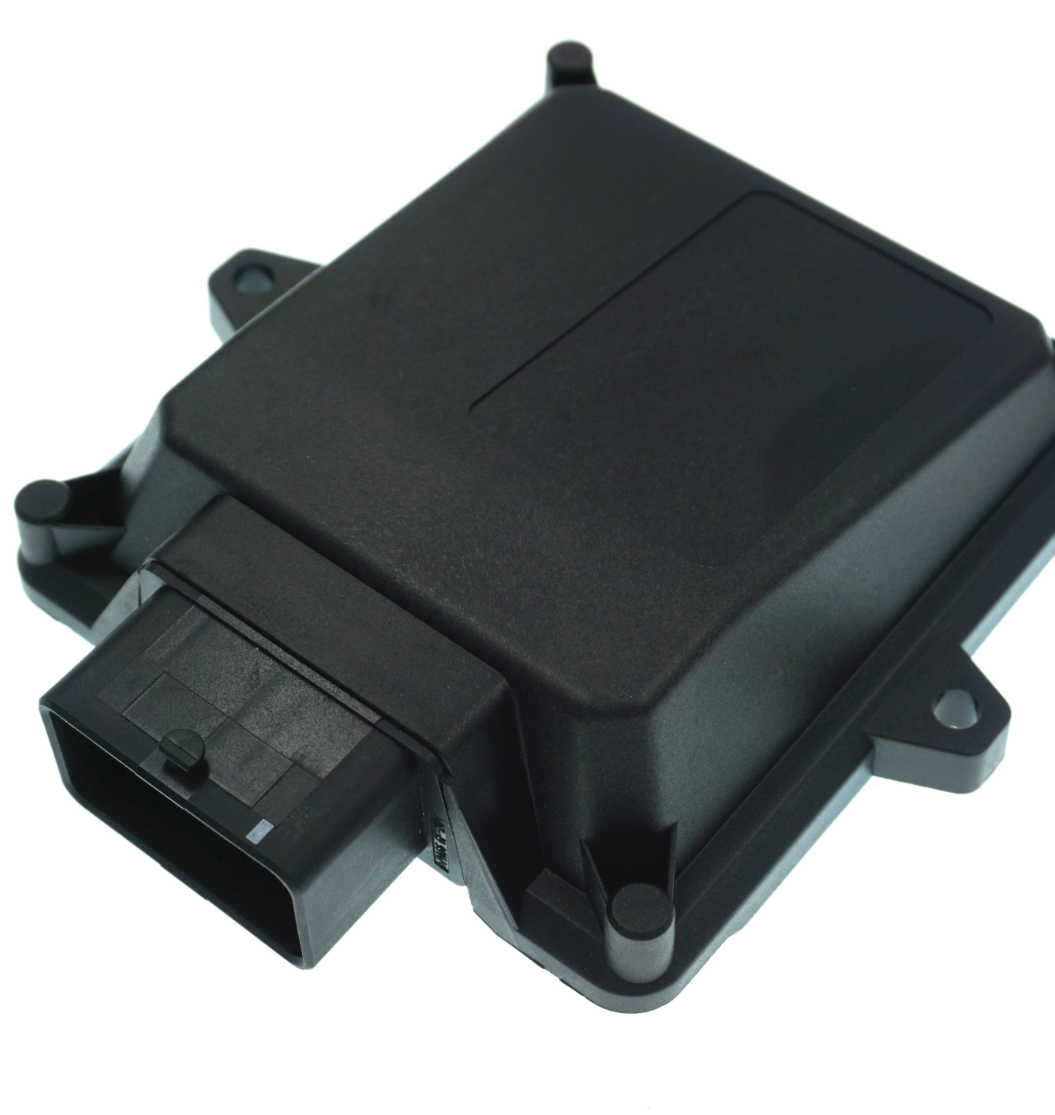

| Controller | MP48 or MP48OBD, hardware revision and software version |
| Wiring Harness | Connector layout, pin assignment, cable lengths and engine application |
| Changeover Switch | Compatible controller version, display functions and level-sensor requirements |
| MAP Sensor | Whether supplied, installation arrangement, model, pressure range and electrical characteristics |
| Other Sensors | Required gas pressure and temperature sensors and their compatibility |
| Calibration Interface | Required cable or interface and whether included |
| Software and Documents | Software access, supported PC environment, wiring diagram and setup instructions |
The MAP sensor arrangement must match the actual hardware. MAP means manifold absolute pressure. Confirm whether the supplied system uses an external sensor or another arrangement; do not describe it as built-in without model-specific confirmation.
System components must be reviewed together. Use our conversion kit component guide when checking the full installation requirements.
MP48 Technical Specifications
The following parameters are listed in the product information. Confirm each value against the technical sheet for the controller supplied with your order.
| Fuel Application | CNG or LPG with matched hardware and calibration |
|---|---|
| Nominal Voltage | 12 V DC |
| Operating Voltage | 10–16 V DC |
| Cylinder Options | 3 or 4 cylinders; confirm the supplied version and application |
| Listed Coil Resistance | ≥1 Ω; confirm the applicable component and approved injector models |
| Injector Emulation Resistance | 150 Ω; confirm circuit application and tolerance |
| Listed Ambient Temperature | −40°C to +125°C; confirm whether this covers powered operation, storage or another condition |
| Listed Enclosure Protection | IP54; confirm the tested assembly and installation requirements |
| Connector | 48-pin; verify wiring and pin assignment |
Connector shape and cylinder count do not establish compatibility. Compare the wiring diagram, injector-driver requirements and sensor characteristics before installation or replacement.
Does This Kit Include OBD Functions?
MP48 and MP48OBD must be ordered as the correct versions. Do not assume standard MP48 hardware includes vehicle OBD communication or automatic fuel-trim correction.
Communication: Confirm supported vehicle protocols and wiring requirements.
Fuel-trim data: Confirm access to short-term and long-term fuel trims, also called STFT and LTFT.
Gas correction: Confirm whether OBD-based correction is supported, its settings and operating limits.
Diagnostics: Confirm gas-system fault reporting and vehicle fault-code functions separately.
OBD correction does not guarantee fault-code elimination. Engine faults, incorrect component selection, wiring problems and calibration errors require diagnosis. Clearing a code does not repair its cause.
Which Operating Functions Need Configuration Checks?
Starting and switch-back strategies depend on the software and installation. Request the function list for the supplied controller rather than assuming all modes are enabled.
Petrol switch-back: Confirm the supported triggers, thresholds, delays and driver indication.
Starting modes: Confirm normal starting fuel and any supported hot-start or emergency-start function.
Petrol contribution: If supported, confirm when petrol injection remains active and how it is configured.
MAP correction: Confirm compatible sensor specifications and calibration settings.
Calibration must use the instructions for the exact ECU version. Read our injector rail and ECU calibration guide for related background information.
Will It Match Your Vehicle or Existing Installation?
An application review needs the engine and installed component details. Provide the information below for a new conversion or replacement request.
Vehicle make, model, year and engine code
Cylinder count and original petrol injection type
Required gas fuel: CNG or LPG
Gas injector model and electrical specifications
MAP, pressure and temperature sensor models
Existing ECU label and connector photographs for replacement orders
Required OBD functions and available vehicle protocol
Direct-injection applications require explicit engine-code confirmation. Do not assume a standard sequential gas ECU supports GDI or TGDI engines. Consult our direct-injection conversion guide before selecting a controller.
How Should Environmental Ratings Be Checked?
IP54 is an enclosure protection rating, not a general waterproof guarantee. Request the applicable IEC 60529 report and confirm the enclosure, connector and seal configuration covered by the test.
The temperature rating requires defined test conditions. Request the temperature profile, test duration, powered state and acceptance criteria supporting the stated range. Follow the specified mounting requirements.
Electrical checks: Supply-voltage conditions and input/output results.
Communication checks: Software version, supported protocols and tested functions.
Traceability: Controller model, batch or serial reference and inspection date.
Approval documents: Applicable standard, report or certificate reference and covered model.
Documents should match the controller you purchase. Review our certification information and request applicable model-specific records.
Frequently Asked Questions
Can this MP48 kit control CNG and LPG systems?
Both applications require matched hardware and settings. Confirm the selected fuel, injectors, regulator and sensors. ECU compatibility does not make CNG and LPG pressure components interchangeable.
Will every fault cause automatic switch-back to petrol?
Switch-back behavior depends on supported triggers and configuration. Request the documented fault and pressure conditions. Verify the supported functions during commissioning.
Is the MAP sensor built into the ECU?
The sensor arrangement must be confirmed for the supplied version. Request the sensor model, wiring diagram and accessory list before ordering.
Can a 48-pin MP48 replace another 48-pin controller?
A matching pin count is insufficient. Check the pin assignment, harness, software, injector drivers and sensors before replacement.
Who should install and calibrate the kit?
Qualified autogas technicians should perform installation and commissioning. Follow component instructions and applicable local requirements. Verify wiring, sensor readings and calibration before service.
Request an MP48 ECU Conversion Kit Quotation
Specify the required controller and accessory package. Send the engine details, fuel type, injector and sensor models, OBD requirements, destination country and order quantity.
The quoted price should identify the complete supply scope. Confirm whether it covers the ECU only or includes the harness, switch, sensors, software access and communication interface. Request warranty terms and delivery lead time.
